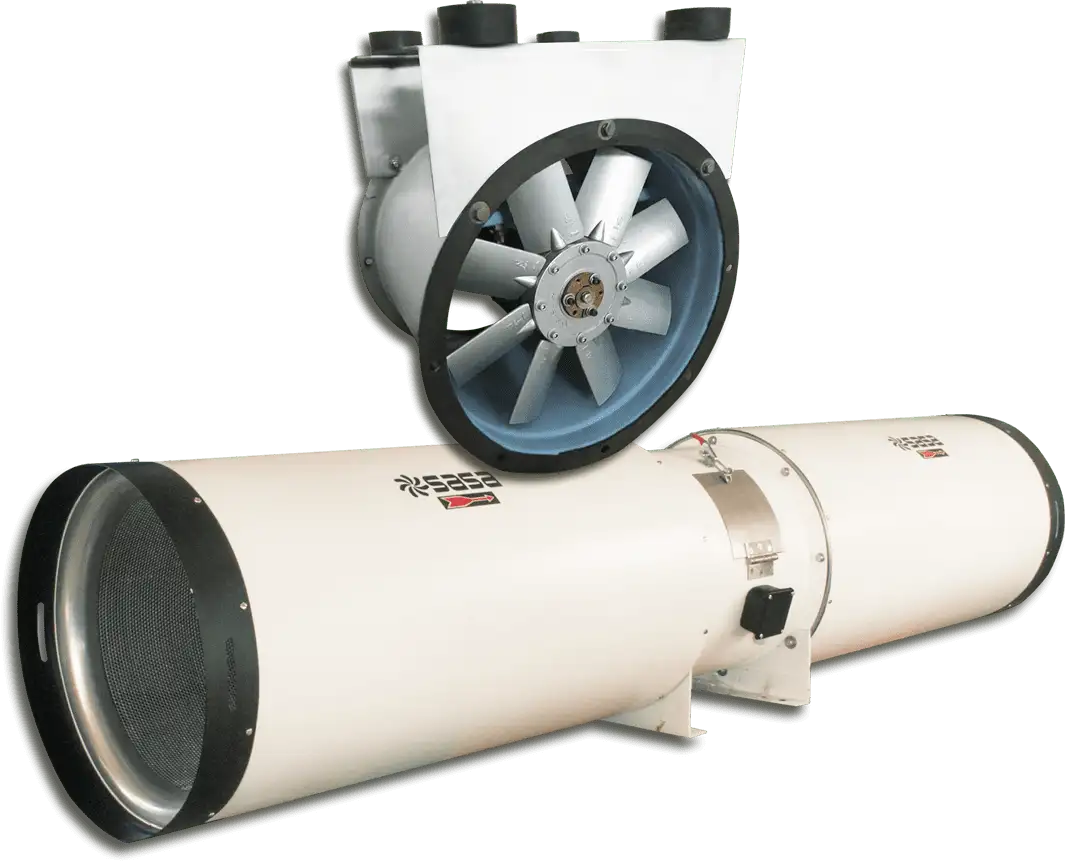

Energy Efficient Jet Fans
Jet fan systems are active system offering a cost-effective solution to ventilate and extract smoke and pollutants, for example Carbon Monoxide (CO), for car parks. This ductless ventilation system provides either normal ventilation or smoke extract in case of emergencies, or a combination of both. These fans can be strategically positioned to meet specific ventilation requirements, with options for ceiling, wall, or floor mounting depending on the layout and design of the space. these lines are unique and human written
Key Feature of Jet fans
Fans
- Axial Jet Fan Construction of Die cast Aluminum blades with Hub
- Supplied in 3 sizes 12”,18” & 20” Dia
- Direct drive with motor.
- Hi-quality glass wool insulation used in silencer
- Fan is able to work properly for 30 minutes at 250ᵒC
Silencer
- M.S silencer on both sides
- The silencers are designed to achieve high efficiency by using special inlet and outlet cones with low resistance. The acoustic material is mechanically protected by a perforated steel plate. The silencers are made from galvanized sheets.
Motor
- IP-55, Class-F imported or Siemens Motor.
- 380 -400V/3Phs/50Hz in
Finish
- Impeller Silver coated.
- Tube D-greasing, acid bath phosphating with non-ferrous coating, and finally electrostatic paint at 250ᵒC.
On Request
- Silencer (spare)
- Motor (spare)
- Fan Impeller complete. (spare)
- Blades (spare)
- Hub (spare)
